Custom Fabrication & Packaging

CAE’s Custom Fabrication Division Offers Complete Engineered Packaging Solutions

Cradle to Grave Service

At CAE, we understand that your custom fabrication package may require more than just the equipment itself. CAE’s fabrication division offers custom packaging solutions for customers looking for a complete package – and we support every package we build through the top-notch support of our service, parts and equipment rental departments.

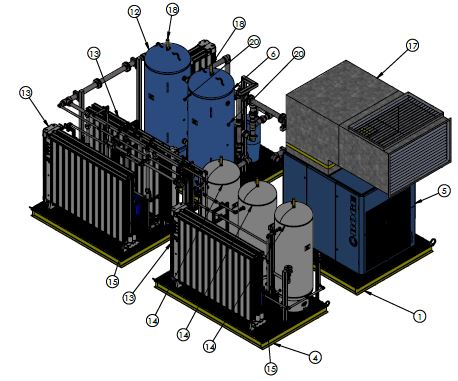

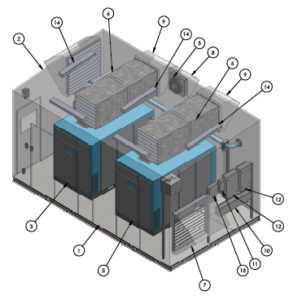

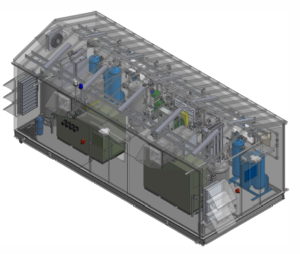

Our highly-trained engineering staff work with you to design and develop custom packages built specifically to meet your needs. Along with the physical end product, we also offer full Documentation services, which may include 3D (CAD) drawings, P&ID’s, BOM’s, Pile Load and Lifting Diagrams, etc – as well as the compilation of full custom manuals specific to your package.  Whether your documentation requirements are minimal or total, we have the experience and expertise to deliver what you need, as well as provide reviews and P. Eng stamps for the regulatory authorities as required.

Catering to both domestic and international clients, our fabrication division offers custom built and custom fabricated packages for industries as diverse as Energy (Oil & Gas), Food and Pharmaceuticals Packaging and Preservation, N2 Blanketing and Fuel gas to Pneumatic conversions, Drill air, Mining, Forestry and Industrial Air applications, and ranging from the following:

  • Standard pressure (0-125 psig) Instrument Air systems for both GA and Hazardous locations
  • Medium (126 – 399 psig) and High Pressure (400 psig – 7,000 psig) Compressed Air systems
  • Nitrogen & Oxygen Generation Packages- using PSA or Membrane technology
  • High-pressure Feed Air systems to 500 psig
  • High-Pressure Booster Systems to 21,750 psig
  • Diesel or Natural Gas engine driven, electric driven, PTO driven, or hydraulic driven packages
  • Power generation packages including Self Contained Off-grid Instrument Air Systems
  • Positive displacement vacuum packages (rotary lobe, screw, dry vane, or liquid ring) to 28″ HG
  • Positive displacement blower packages up to 40 psi
  • Custom Fabrication needs

Check out our custom package brochures to learn more about what our fabrication division can create for your specific needs:

Certifications and Engineering

Through the use of both internal and external Engineering Resources, and working closely with our equipment suppliers, we strive to deliver all required documentation and drawings catered to our customers’ needs. We are ABSA and CSA certified and are also a COR Certified company with a keen focus on safety.

Support Documentation

In today’s world, we understand that support documentation plays a huge role in the procurement requirements. Because of this, we can offer documentation based the needs of the customer. If your requirements are more extensive we will also custom cater document packages to suit your requirements.

  • General Arrangement Drawing (Includes major equipment drawings)
  • Piping & Instrumentation Drawing1
  • Major Equipment Operating & Maintenance Manuals
  • Electric Block Diagram
  • Vessel U-1A Forms
  • AB-83 Form2
  • Quality Control Manual
  • Shop Certificates
  • Production Schedule
  • Inspection & Test Plan
  • Recommended Spare Parts List
  • Major Equipment Data Sheets
  • Structural Base Drawings1,2
  • Building Drawing1,2
  • Major Equipment Electrical Drawings
  • Material Test Reports (Structural, Piping & Fittings)
  • Weld Procedures
  • Paint Procedures
  • Nameplate Pictures
  • Foundation Loading Diagram1
  • Lifting Diagram1
  • Line List1
  • Full Material Test Reports
  • Vessel ASME Calculations2
  • Welder Qualification Records
  • Pressure Test Procedure & Report
